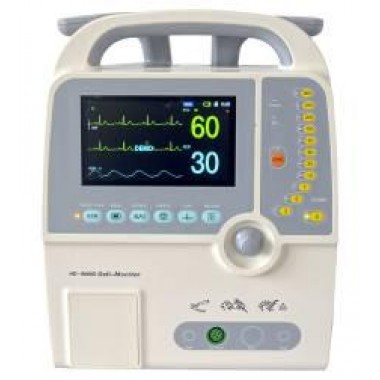

Hosun Medical Equipment Co.,Ltd

● Ventilation Modes: CMV(IPPV), A/C(SIPPV), SIMV, Spont, PEEP (optional)

● Defibrillator Mode: Manual, Synchronous, Asynchronous

● 7 Inch TFT Display

● Energy Accuracy: <±1%

● Energy Selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360J (nominal at 50 resistance)

● Charge Time: less than 10s at 360J

● Standard Adult/Pediatric Paddles: reusable external adult paddles (pediatric paddles integrated)  l

● Respiration Measurement Method: Thoracic impedance

● Power Requirements

AC Power Supply: 100V~ 240V, 50Hz/60Hz

Vehicle Voltage (optional): DC 12V

Internal Battery Backup

● Battery Type: rechargeable lead-acid battery (12V2.0AhX2)

● Minimum Charge Time: 4 hours for full charge

● Charging/Low Battery Indication: red LED

● Charging Method: during normal operation of device under AC Power Supply

● Battery Capacity: the battery (on a full charge) will permit 120 minutes of monitoring & 30 discharges at 360J

ECG

● ECG Lead: I, II, III, aVR, aVL, aVF, V1~V6

● S-T Segment Analysis: -2.0~2.0mv

● Arrhythmia Analysis: yes

● Electrical Protection: able to withstand 4000VAC/50Hz voltage in isolation and resistant to electrosurgical devices & defibrillation
